Load Cell / Indicator

The RG3M is a single column, stainless steel compression loadcell ideally designed for use in road and rail weighbridges and process weighing applications. The welded construction and built-in surge protection ensure that this product can be used successfully in harsh environments. Sucessfully used in both indoor and outdoor enviroments these loadcells spell out excellent reliability for any application. Digital version of the loadcell are also available and meet most precise weighing requirements for contemporary weighing applications.

DEB Series double ended loadcells are designed for truck and rail scales in high capacities with low profile. The design of loading through a ball is insensitive to side load. DEB Series is constructed of alloy steel and is fully potted and sealed with special silicone compounds to IP65 grade, providing excellent protection against water and moisture attack. Hermetically-Sealed versions are also available and are constructed to IP67 providing excellent protection against corrosive and washdown evnironments. Applications Include

LoadMaster STL series offers range of Tension/Compression Load Cells, often called S type loadcell. This is an advanced concept in providing the weighing industry with the ultimate protection necessary for today's hostile weighing environment.

LoadMaster STL902 series is a low cost tension-compression load cell made from nickel plated alloy steel and has bonded covers for additional protection. It is suitable for use in a wide range of weighing, process weighing, force measurement and industrial process control applications. Protected to meet IP65 requirements, the construction of the STL902 load cell allows its use in most industrial process applications. IP67 / IP68 versions are available on request and are designed in fully-welded stainless steel sharing the same dimensions as model STL902.

Applications

•  Hopper (tank weighing)
•  Hybrid scales
•  Belt weighing
•  Lever arm conversions
•  Material testing machines

The SBL201 ( without feet mounting ) loadcells are low profile single ended shear beam type load cells constructed out of stainless steel or aloy steel. These products are suitable for small and medium platform scales, overhead track scales, hopper scales and process weighing applications. Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons or loading cables. Mounting feet with rubber cover gives a quick & easy solution for making 4-6 loadcell platforms with sizes upto 3m x 3m.

Applications

•  Truck/ Rail scales
•  Silo/ Hopper/Tank weighing
•  Platform scales (multiple load cells)
•  Pallet truck scales
•  Packaging machines

The SBL201M loadcells are low profile single ended shear beam type load cells constructed out of stainless steel or aloy steel. These products are suitable for small and medium platform scales, overhead track scales, hopper scales and process weighing applications. Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons or loading cables. Mounting feet with rubber cover gives a quick & easy solution for making 4-6 loadcell platforms with sizes upto 3m x 3m.

Applications

•  Truck/ Rail scales
•  Silo/ Hopper/Tank weighing
•  Platform scales (multiple load cells)
•  Pallet truck scales
•  Packaging machines

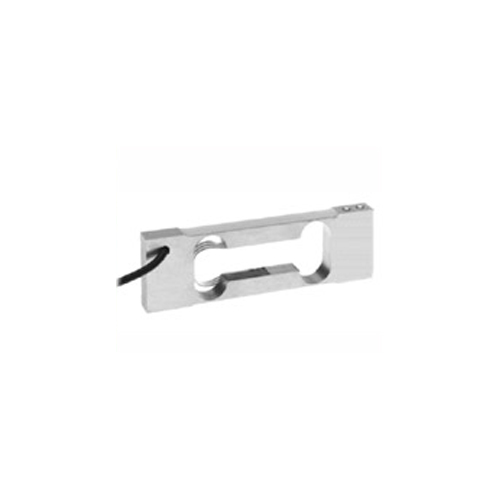

Loadmaster SPL110H are very low capacity, very high precision single point load cell designed for direct mounting in low capacity scales and precision balances. This load cell is suitable for applications including jewellery scales, analytical balances, medical equipment, medical and pharmaceutical research and low level force measurement. The model offers up to 60000 divisions short term precision at stable room temperature. A special two-stage humidity resistant protective coating assures longterm reliability. An overload protection device can be easily included in the application design. A threaded hole is provided in the loading end of the load cell for this purpose.

Applications

•  Jewelry Scales
•  Laboratory Balance
•  Buffer Weighing
•  Hi Precision Scales
