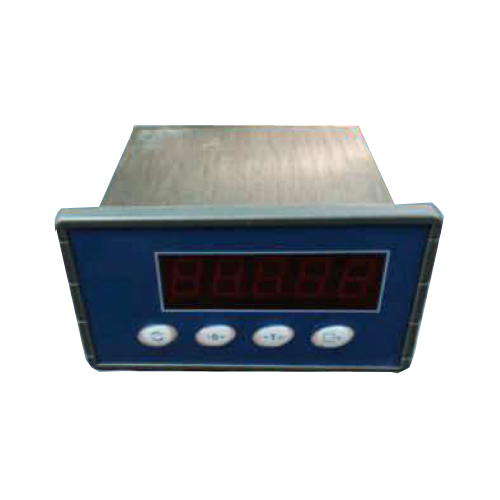

Prime Weighing Controller with 4~20 mA
Applications
- 2 Setpoint DO Output Modes
- EMC design with high anti-jamming capability, suitable for industrial environment
- 32-bit ARM CPU with 48MHz ciock & high arithmetic speed
- 5 Red LED digital tubes for English character and digit display
- Menu & Shortcut miode operation
- 24-bit High-precision and high-speed £ - A/D conversion module with 1/1,000,000 interal resolution and max sampling frequarcy 1280Hz
- Spectal anti-vibration digital fittering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor. and the rapid response capability when the weight signal Changes.
- Optional weighing input signal mV and mA for connecting " (mV) Output Type Loadcell /[Voltage Output Type Weighing Transmitter and (mA] Curent Output Type Weighing Transmitter
- Zero upon power up, zero auto tracking, Manual/Auto zero and zro calibration available
- Load callibration, Data calibration, segmenting span correction and segmenting weight calculation available.
- Auto-locking. Key-locking. Key-unlocking, Digital Setting & Calbration and 1/0 Testing functions available
- Normally open switch input [DI] and 2 Relay switch output with normally open and normally closed contacts [DO].
- 1 Definable analog signal output [AO : 4~20mA / 0~20mA / 0~5V)
- RS232 and RS485 communication parts for connecting host IPC/PLC and LED remote display.
